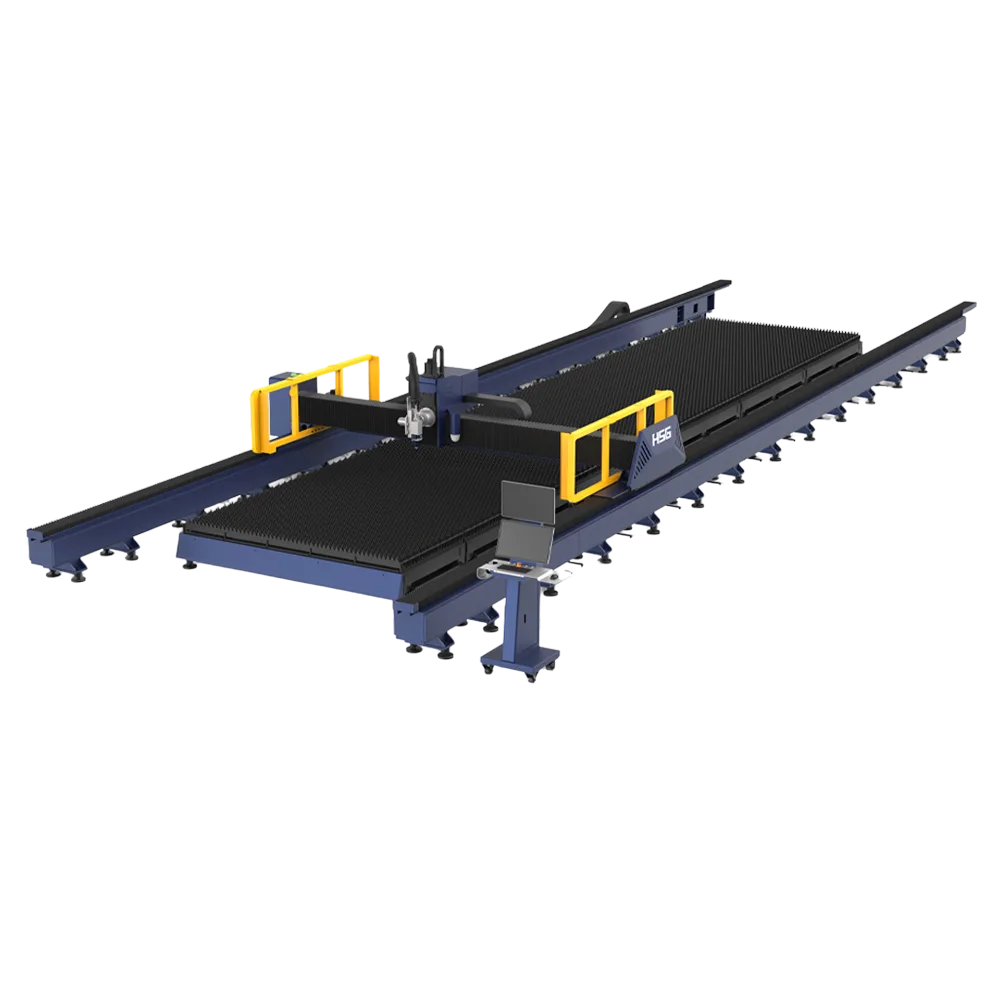

GFA Series
A large-format laser cutting machine designed for efficient processing of oversized sheets, with optional 0–45° bevel cutting and flexible bed configuration.
- 12–60 kW Laser power
- 13,000 × 3,500 Format (mm)
- ± 0.05 mm/m Positioning accuracy
- 0–45° Bevel (optional)
Product description
The GFA Series is designed for large-format sheet cutting, with a configurable machine bed that can be extended in both length and width according to production requirements. Its optional 0–45° bevel cutting capability supports V-, X- and Y-shaped bevels, helping reduce subsequent processing steps.
The machine separates the worktable from the transmission mechanism to reduce the effect of heat generated during high-power laser cutting. It also offers optional zoned dust extraction and an independent inkjet marking system for applications that require marking during fabrication and assembly.
Features
0–45° Bevel Cutting
The optional bevel-cutting system supports V-, X- and Y-shaped bevels from 0° to 45°. This can reduce subsequent processing steps while supporting accuracy and efficiency in bevelled components.
Flexible Length and Width Configuration
The machine bed consists of multiple sections, allowing its length and width to be configured according to production requirements. The extendable splicing bed is designed to accommodate large-format sheet cutting.
Efficient Zoned Dust Removal
The optional dust-removal system divides the fixed cutting table into zones for synchronized smoke extraction. Airflow and adsorption are optimized according to the cutting area to help reduce dust dispersion during processing.
Independent Inkjet Marking System
The optional inkjet marking system helps identify part positions and processing requirements during subsequent welding and assembly. This can help reduce misinstallation or omitted components, particularly in applications such as shipbuilding.
Separated Worktable and Transmission Mechanism
The worktable and transmission mechanism are designed as separate systems. This helps isolate the transmission components from heat generated during high-power laser cutting, supporting stable operation, positioning accuracy and machine service life under high-load conditions.
Specifications
| Specification | Details |
|---|---|
| Model | G13035FA |
| Laser Power | 12kW–60kW |
| Processing Format | 13,000 × 3,500 mm |
| X/Y-Axis Positioning Accuracy | ±0.05 mm/m |
| Bevel Cutting | 0–45° optional |
May we help?
- Can the GFA Series be configured for different production requirements?
- Yes. The machine bed can be configured in both length and width, allowing the processing area to be adapted to different large-format production requirements.
- Is bevel cutting available on the GFA Series?
- Yes. The GFA Series offers optional 0–45° bevel cutting and can produce V-, X- and Y-shaped bevels.
- Is the GFA Series suitable for applications that require part identification?
- Yes. An optional independent inkjet marking system can mark part positions and processing information, helping with identification during subsequent welding and assembly operations.
