Effective L
Precision Fibre Laser Cutter for Electrolamination Sheet Processing
- 1 / 2 kW Laser output
- 2500 × 1250 Coupled table (mm)
- 840D SL CNC control
- Linear X/Y drives
Product description

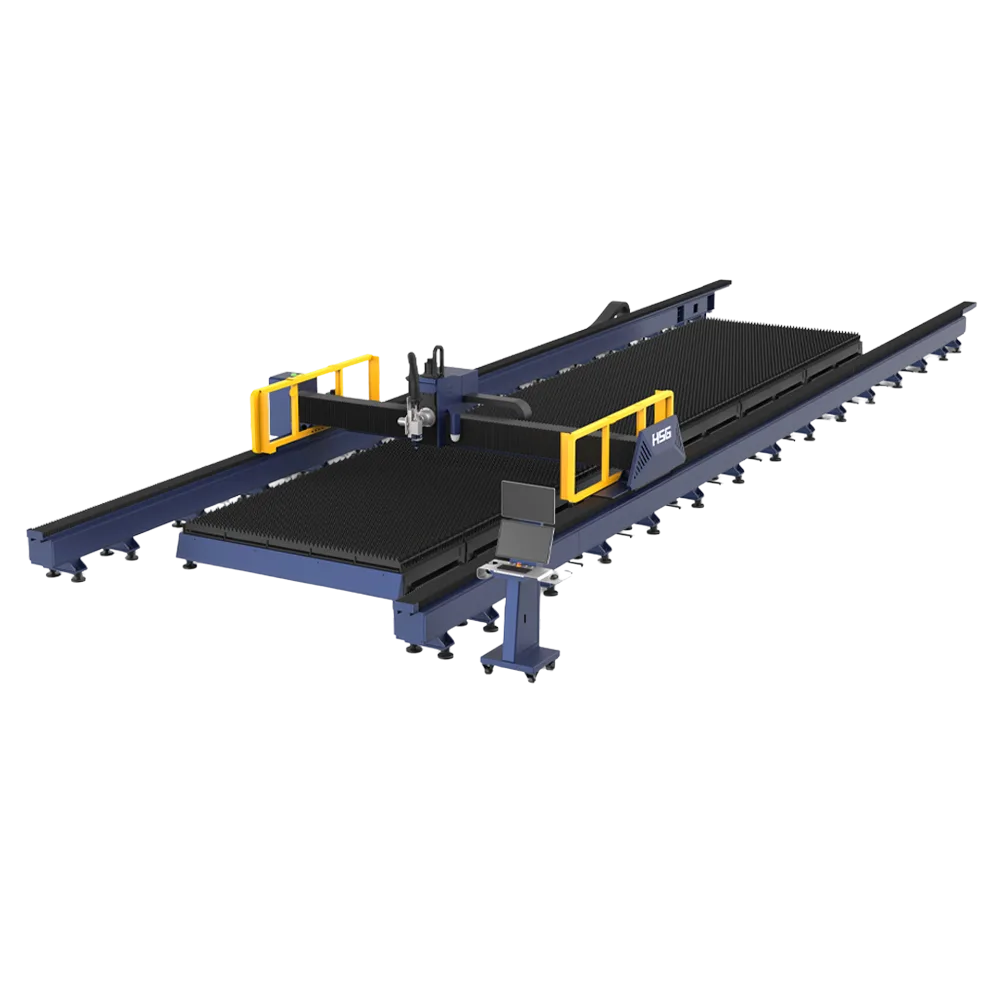

Effective L is a fibre laser cutting machine designed for precise metal sheet processing. It combines 1–2 kW fibre laser output with 840D SL CNC control, linear-motor drives and lightweight carbon construction. Its dual processing tables can operate independently or be coupled into a 2500 × 1250 mm working area.
Features
Stress-Relieved Steel Frame
The welded steel frame is annealed for stress relief, providing a stable foundation for the machine and its moving axes.
Linear-Motor Drive Technology
Linear motors provide direct movement along the X and Y axes, supporting high dynamic performance, path accuracy and reduced mechanical wear.
Dual Processing Tables
Two adjacent 1250 × 1250 mm tables allow one table to be unloaded and reloaded while the other is operating. The tables can also be coupled to create a 2500 × 1250 mm working area, with access from three sides.
840D SL CNC Control
The 840D SL CNC system controls the machine's movements and cutting operations, working with the linear-motor drive system for precise axis positioning.
Lightweight Carbon Construction
Lightweight carbon structures are used for the moving Y-axis and associated attachments. The reduced moving mass supports higher dynamics and shorter processing times for complex parts.
Fiber Laser Technology
The machine uses a fiber laser with approximately 30% electrical-optical efficiency and high beam quality for cutting structural steel, stainless steel, aluminum, brass, copper and other metal alloys within the specified thickness ranges.
Specifications
| Specification | Details |
|---|---|
| Drives | X/Y-axis linear motors; Z-axis circulating ball screw with servo motor |
| Guides | Backlash-free preloaded circulating ball bearings |
| Footprint | Approx. 34 m² |
| Axis Paths | X: 2530 mm, Y: 1260 mm, Z: 50 mm |
| Beam Source | Fiber laser |
| CNC Control | 840D SL |
| Laser Output | 1 kW / 2 kW |
| Cutting Gases | Nitrogen or oxygen |
| Machine Structure | Welded steel construction with lightweight carbon moving parts |
| Processing Tables | 2 × 1250 × 1250 mm individual; 2500 × 1250 mm coupled |
| Dimensions W × D × H | 5500 × 6200 × 2200 mm |
| Electrical Power Consumption | Approx. 14 kW, complete machine in operation |
Material & Thickness Capacity
| Material | 1 kW | 2 kW |
|---|---|---|
| Structural Steel | 3 mm | 10 mm |
| Stainless Steel | 3 mm | 4 mm |
| Aluminum | 2 mm | 4 mm |
| Brass | 3 mm | 4 mm |
| Copper | 2 mm | 3 mm |
May we help?
- Can the two processing tables be used separately?
- Yes. The two 1250 × 1250 mm tables can operate independently, allowing one table to be loaded or unloaded while the other is in operation. They can also be coupled for a 2500 × 1250 mm working area.
- Why does Effective L use linear motors on the X and Y axes?
- Linear motors provide direct axis movement without conventional mechanical transmission components, supporting high dynamic performance, accurate paths and lower mechanical wear.
- Which materials can Effective L cut?
- The machine can process structural steel, stainless steel, aluminum, brass and copper. The maximum thickness depends on the laser output and material, with specific limits listed in the technical specifications above.
